Outdoor Cable Series- Loose Tube Stranded Fiber Ribbon Cable(GYDTA) Wasin Fujikura

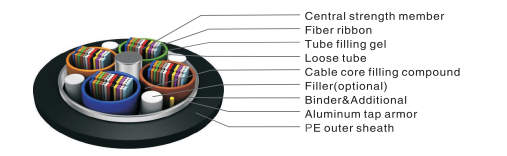

description
► Central strength member
► Loose tube stranded
► Corrugated steel tape armored double PE sheath
Performance
► Application: Access network and building network communication
► Installation: Duct/Aerial
► Operating Temperature: -40 〜+70 °C
► Bending Radius: Static 10 x D / Dynamic 20 x D
Feature
► All section water blocking provided reliable performance of moisture-proof and water block
► Special filling gel filled loose tubes provide perfect optical fiber protection
► Corrosion resistance phosphated steel wire with high young's modulus as central strength member gives high strength
► High fiber density, convenient for installation, easy identification and maintenance, cost saving.
► Suitable for access network (especial in FTTC and FTTB), interoffice connection and CATV network
► Strict craft and raw material control enable lifespan over 30 years
► 4-fiber ribbon, 6-fiber ribbon, 8-fiber ribbon, 12-fiber ribbon are available
► If loose tube stranded fiber ribbon cable is armored with steel tape, the type is GYDTS.
► Out sheath can be made of low-smoke zero halogen (LZSH) material, and the flame retardant type are GYDTZA, GYDTZS.
► On customer's requests, longitudinal color strip on outer sheath can be provided. More details, please refer to GYTA
Special cable structure can be designed and manufactured on customer's request.
Structure and technical specifications
|
Fiber Count |
No. of (Tubes+fillers) |
Max Fibers Per Tube |
Nominal Diameler (mm) |
Nominal Weight (kg/km) |
Allowable Tensile Load(N) (Short term/long term) |
Allowable Crush
Resistance(N/10cm) (Short term/long term) |
|
| 4-Fiber
Ribbon |
8~96 |
6 |
4 |
15.4 |
217 |
1500/600 |
1000/300 |
| 6-Fiber
Ribbon |
12~120 |
5 |
4 |
15.6 |
220 |
1500/600 |
1000/300 |
| 126~144 |
4 |
6 |
16.3 |
226 |
|||
| 150~216 |
6 |
6 |
18.8 |
307 |
2200/600 |
||
| 8-Fiber Ribbon |
8~192 |
4 |
6 |
16.8 |
240 |
1500/600 |
1000/300 |
| 200~288 |
6 |
6 |
19.7 |
320 |
2200/600 |
||
| 294~384 |
6 |
8 |
21.8 |
390 | |||
| 12-Fiber
Ribbon |
24~192 |
4 |
4 |
183 |
288 |
3000/600 |
1000/300 |
| 204~288 |
4 |
6 |
19.5 |
320 | |||
| 300~432 |
4 |
9 |
21.6 |
385 | |||
| 432~600 |
5 |
10 |
24 |
450 | |||
|
>600 |
Available upon customer's request |
||||||
