Outdoor Cable Series- Air-blown Micro-cable Wasin Fujikura

Short Description:

► Central loose tube or stranded structure

► Non-metallic strength elements

► PE outer sheath


Product Detail

Product Tags

description

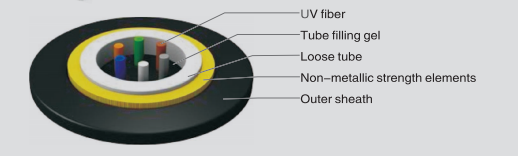

► Central loose tube or stranded structure
► Non-metallic strength elements
► PE outer sheath

Application

► Duct Air-blown
► FTTH access network

Feature

► Small size, light weight, high fiber density
► Suitable for air-blown installation
► Excellent temperature performance for different temperature environment application.
► Designable performance for cruch resistance and high flexibility Microcable is mainly used for access networks and metro and installed by Air-blown technology, without digging the road in a tiny pipe, also can be installed on the existing cable pipeline, sacing pipeline resources to meet the networking needs of real-time expansion, thus the cable is an effective FTTH solution.
► Fiber types: single-mode fiber G.652B/D G.657 or G.655A/B/C, multimode fiber Ala, Alb, OM3, or other types.
► Delivery length: in accordance with custom's request.

Structure and technical specifications

Structure

Fiber

Count

Nominal Diameter (mm)

Nominal Weight (kg/krn)

Allowable

Tensile(N)

Minimum Bending

Radius(mm)

Allowable Crusl

Resistant(N/l 0cm)

Short term

Long term

Dynamic

Static

All-dielectric central tube

2~24

4.4

18

100 160

90

45

1000

All-dielectric stranded

12~48

5.4

29

100 160 20D 10D

1000

50 ~72

5.8

37

100 200 20D 10D

1000

74 ~96

7.2

52

100 200 20D 10D

1000

120 ~144

9.2

122

100 200 20D 10D

1000

Operating temperature

-40 °C 〜+70°C
Storage temperature

-40 °C *70 °C

Installation temperature

-5°C -4-50 °C
